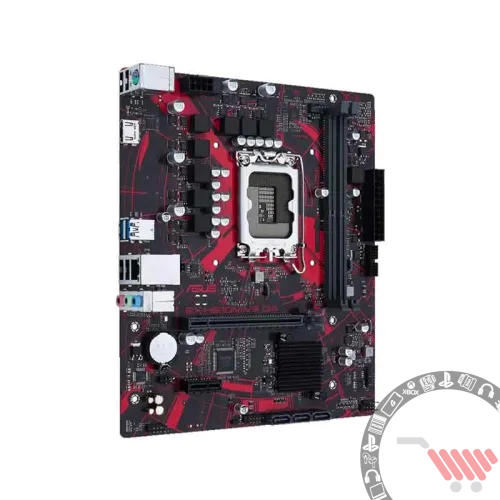

Asus EX-H610M-V3 D4 mATX Motherboard

100% оригинальный продукт

Получите полный возврат средств, если товар не соответствует описанию

Original price was: 19,800৳ .Current price is: 11,800৳ .

Added on August 31st, 2024

Цена может измениться в любой момент. Пожалуйста, свяжитесь с нами в чате перед подтверждением заказа. А также, пожалуйста, ознакомьтесь с политикой возврата и возмещения перед заказом

5 Люди сейчас смотрят этот продукт!

Способы оплаты:

  • Магазин в зеленом городе

Посетите наш магазин в Green City и получите потрясающие скидки.

Посещать

  • Получите бесплатную доставку

Получите бесплатную доставку при заказе на сумму более 10 000 така.

1-3 Дни

  • 7726930 Оплата безопасна для нас

Оплатите полную сумму для подтверждения заказа.

Безопасный

  • Гарантия до 3 года
  • Бесплатный возврат в течение 7 дней

Описание

Basic Information
Supported CPU Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H610 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”

Audio Features
– Audio Shielding
– Dedicated audio PCB layers

Expansion Slots
PCI Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Max. 64GB
Graphics
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4)
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI 1 x HDMI port
USB (s) Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

LAN Port (s) 1 x Realtek 1Gb Ethernet port
Supported Storage Total supports 3 x SATA 6Gb/s ports
Intel H610 Chipset
3 x SATA 6Gb/s ports
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header

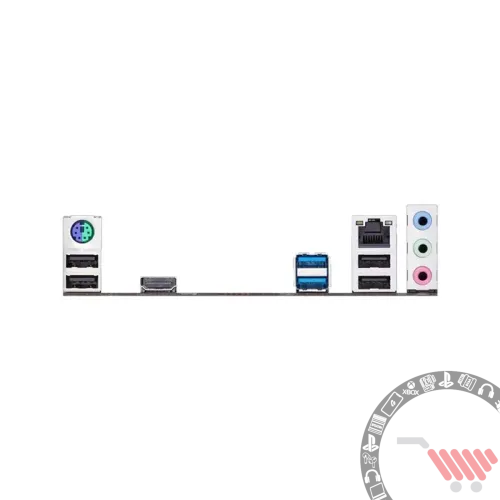

Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
Non-stop Action
– Lightning Boot
Non-stop Challenger
– ASUS iCafe labs certified
Non-stop Durability
– Anti-moisture coating
– USBGuard
Warranty Information
Manufacturing Warranty 3 years warranty
